Drainage products - HDPE
Drainage pipe without filter Ø63
Suitable for all soils except peaty and
ferruginous ground. When adding gravel or sawdust drainage filter, the tube consists of a well-functioning and efficient drainage system. Draining soils,
where the sludge settles very much, then tube should be placed on the protection of sludge.
External pipe diameter (D iš) mm. : 63
Internal pipe diameter (D vid) mm. : 54
Wall thickness (S) mm : 0,9

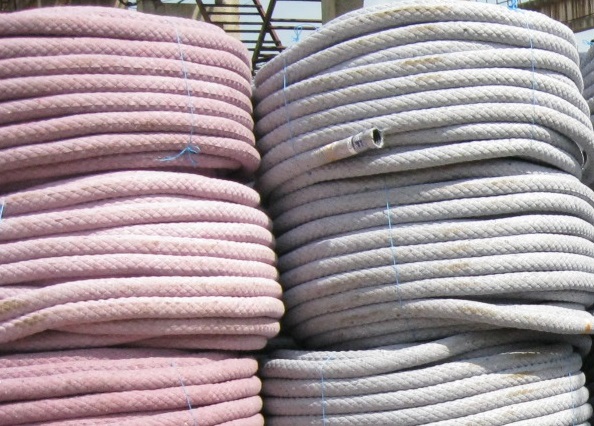

Drainage pipe with geotextile Ø63
Drainage pipes with a geotextile filter are used in a sandy
ground.
External pipe diameter (D iš) mm. : 63
Internal pipe diameter (D vid) mm. : 54
Wall thickness (S) mm : 0,9
Length of roll : 160 m.

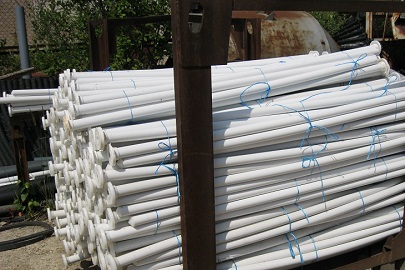

Reclamation columns PE PMS-200
Dimensions:
L (cm) : 200
dv (mm) : 50
dp (mm) : 70
Drainage PE plug PK-5
Dimensions:
H : 37
D inner : 46
Drainage PE plug PK-7,5
Dimensions:
L (cm) : 200
dv (mm) : 50
dp (mm) : 70

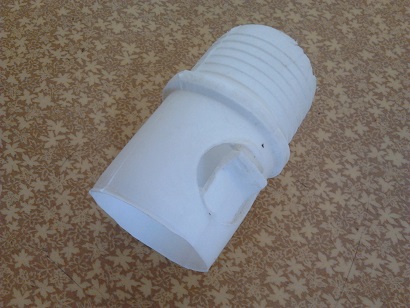

new dehumidification connecting PE (Ø 50mm and Ø 75mm pipes) piece PNS-5-7,5
Dimensions:
d1 : 44
d2 : 62
d3 : 50
Length: 174
Existing dehumidification PE (Ø 50mm and Ø 75mm pipes) connecting piece PES-5-7,5
Dimensions:
d1 : 50; 75
d2 : 50
L pipe. : 800
L dėt: 145

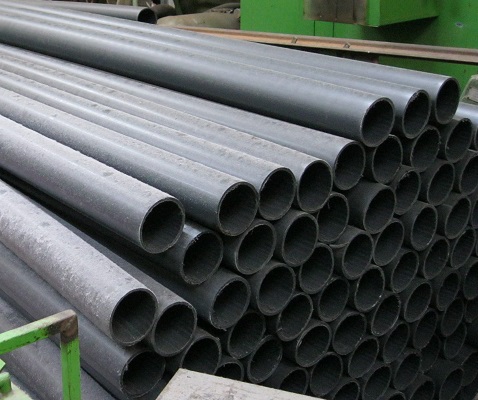

Straight polyethylene pipe Ø 110 mm

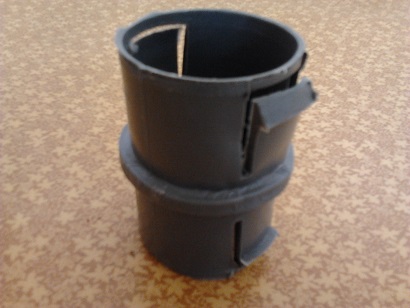

Drain pipe connecting part PE (ф 50-54mm, pipes) PM- 5-5.4
Drain pipe connecting part PE (ф 54mm, pipes) PM-5.4
